Description
CAPACITY
| Total Capacity (cubic feet) | 6.70 |
| Capacity (Cu. Ft.) | 2.4 Upper / 4.3 Lower |
FEATURES
| Cooking System | True European Convection |
| Ignition System | Electronic |
| Burner – Right Rear | 9,500 BTU |
| Oven Interior | 1 Incandescent Light Black |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability Delay Bake Option Electronic Clock & Kitchen Timer Hi / Low Broil In-Oven Broiling Temperature Probe |
| Oven Rack Features | 1 Self-Clean Oven Rack (Upper) 2 Self-Clean Oven Racks (Lower) |
| Burner – Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Reversible Integrated Grill/Griddle (Included) |
| Connected Capabilities | Amazon Alexa DiGiorno Fresco Google Home IFTTT Innit Sonos The Google Assistant |
| WiFi Enabled Features | Baked Goods (Both Ovens) Convection Roast Enhanced Temp Probe Frozen Pizza Multi Rack – Lower Oven Frozen Pizza Single Rack – Lower Oven (No Preheat) Frozen Snacks Multi Rack – Lower Oven Frozen Snacks Single Rack- Lower Oven (No Preheat) No Preheat Air Fry (Lower Oven) Remote Control Remote Notifications Scan To Cook (Oven) |

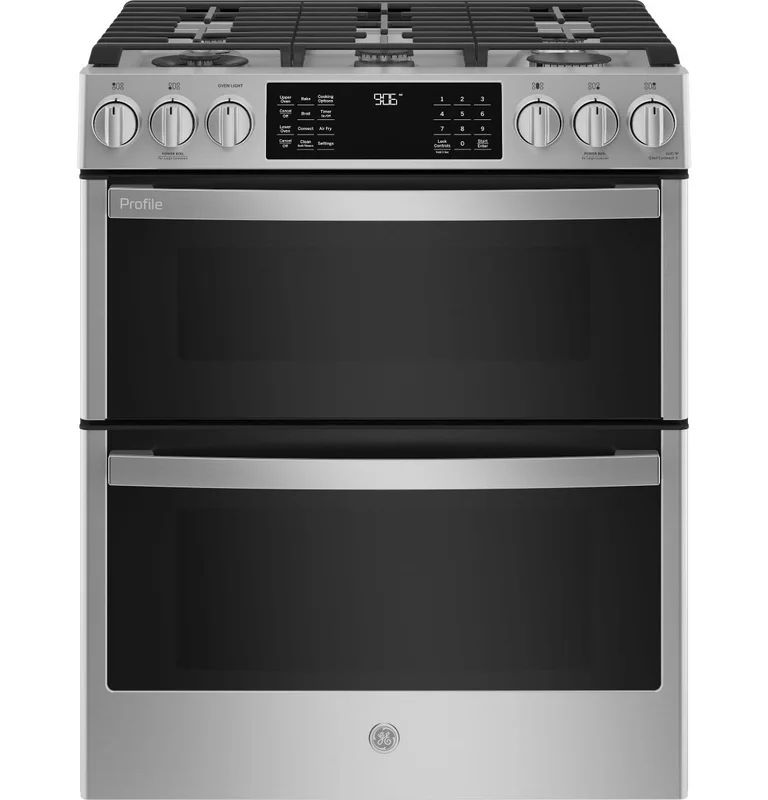

| Product Type | Slide-In Double Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner – Center | 9,500 BTU Dual Oval |
| Dual Ring Burners | Yes |
| WiFi Connect | Built-In |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner – Left Front | 21,000 BTU Tri-ring Burner |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional Upper; Convection Lower |
| Configuration | Double Oven Range |
| OU Certified | No |
| Oven Cooking Modes | Bake Broil (Lower Oven) Convection Bake (Lower Oven) Proof (Lower Oven) Warming (Both Ovens) |
| Cooktop Burner Type | Sealed |
| Burner – Right Front | 15,000 BTU |
| Cooktop Surface | Deep Recessed Edge-to-Edge Stainless Steel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Self-Clean Oven Door Lock | Automatic |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Installation | Flush Appearance Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| Handle Color | Stainless Steel |
| Control Knobs | Stainless Steel |
| Color Appearance | Fingerprint Resistant Stainless |
WEIGHTS & DIMENSIONS
| Net Weight | 271 |
| Depth Without Handle | 26.875 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Cabinet Width | 30.000000 |
| Approximate Shipping Weight | 291 |
| Overall Width | 30 |
| Overall Height | 36 1/2 |
| Height to Top of Rear Vent Trim | 37.625 |
| Overall Depth | 29 7/8 |
| Depth with Door Open | 43.875 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 – Upper; 24 x 15 x 20-5/8 – Lower |
POWER / RATINGS
| Top Burner BTU Rating – Nat. Gas (000’s BTU’s) | (1) 21.0 (1) 15.0; (2) 9.5; (1)5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating – LP (000’s BTU’s) | (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating – Nat. Gas (000’s BTU’s) | 7.0 / 120V Upper; 14.0 / 16.5 Lower |
| Bake/Broiler BTU Rating – LP (000’s BTU’s) | 7.0 / 120V – Upper; 13.5 / 13.5 – Lower |
ACCESSORIES
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| Optional Accessories | WB48X21543 Roller Rack |
| Center Grate | Included |
| LP Conversion Kit | Included |
| Trim Kit | JXFILLR1SS Optional |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CERTIFICATIONS
| Claims & Certifications | ADA Compliant CSA California Prop 65 |
