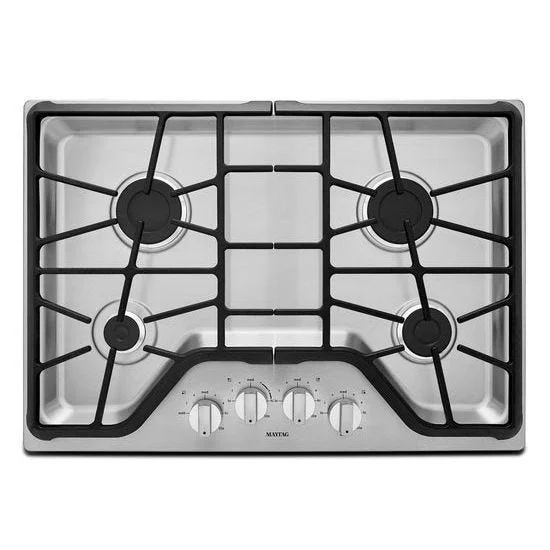

Description
Features15,000-BTU Power™ BurnerAn exclusive burner that delivers maximum power and cooking speed, ensuring precise and consistent results for all types of dishes.
Heavy-duty DuraClean™ continuous cast-iron grates10 Year Limited Parts WarrantyWith a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin’ for , Engineered, and Assembled in the USAFrom Tennessee to you, these cooktops are designed, engineered and assembled in the BurnerThe simmer burner provides 800 to 5,000 BTUs of precise, adjustable heat to give your cooktop both a full-power simmer burner and warming setting all in ControlsFront controls keep your cooktop knobs close at hand so you can manage your meals without breakin’ a
| ADA Compliant | ADA Height and Side Reach Compliant |
| UL | Yes |
| Prop 65 | CA |
Details
| Fuel Type | Gas |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes – Kit Included |
| Power Outage Compatible | Yes |
| Cooktop Type | Standard |
| Cooktop Surface Color | Color Coordinated |
| Digital Display | No |
Element/Burner Details
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 5,000 BTU |
| Left Front Element-Burner Type | Simmer |
| Left Rear Element-Burner Power | 15,000 BTU |
| Left Rear Element-Burner Type | Power™ Burner |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Power | 12,000 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | 9,100 BTU |
| Right Rear Element-Burner Type | Burner |
| Automatic Pan Detection | No |
| Number of Grates | 2 |
Exterior Details
| Knob Color | Stainless Steel |
| Knob Type | Dishwasher-Safe Plastic |
Grate Details
| Grate Details | Cast Iron Grates , Continuous , Dishwasher Safe , Matte Finish |
| Number of Grates | 2 |
Controls
| Control Location | Front |
| Control Type | Knobs |
Dimensions
| Cutout Depth | 19.938 in |
| Cutout Depth Max | 20 in |
| Cutout Height | 5.25 in |
| Cutout Depth Min | 19 in |
| Cutout Width | 28.5 in |
| Cutout Width Max | 29.313 in |
| Depth | 21 in |
| Cutout Width Min | 28.5 in |
| Gross Weight | 58 lbs |
| Height | 3.6875 in |
| Net Weight | 52 lbs |
| Width | 30 in |
| Common Size | 30 in |
| Maximum Height | 4 in |
| Minimum Height | 3.375 in |
Ventilation Details
| Downdraft Vent | No |
Cooktop Details
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Combination Match with Oven | MEW9527 , MEW9530 |
| Installs Over Built-In Oven | Yes |
Electrical Requirements
| Power Cord Included | Yes |
| Amps | 15 |
Documents
Installation InstructionsDownload (PDF 4.6MB)
WarrantyDownload (PDF 1.0MB)
Owner’s ManualDownload (PDF 1.3MB)
Parts ListDownload (PDF 615.0KB)
Quick Reference SheetDownload (PDF 625.0KB)
Dimension GuideDownload (PDF 2.8MB)
Installation Oven and Cooktop CombinationsDownload (PDF 616.0KB)
Instruction SheetDownload (PDF 94.0KB)
MiscDownload (PDF 5.3MB)
