Description

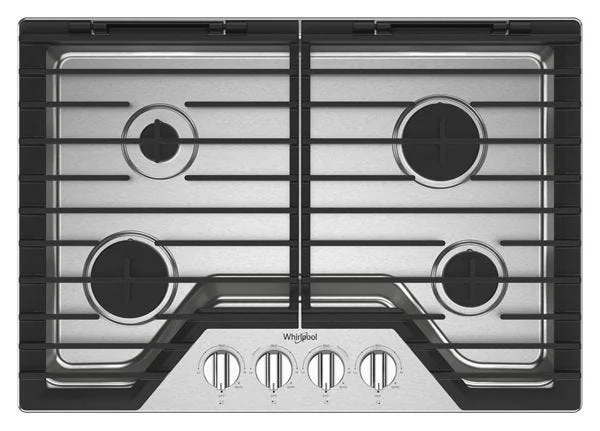

FeaturesSpeedHeat™ BurnerGet a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table FlexibilityNavigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the -2-Lift™ Hinged Cast-Iron GratesGet quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.5K BTU Simmer BurnerEasily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.9.1K–12K BTU Multi-Purpose BurnersGet a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for -Safe Cast-Iron GratesWash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to SpillGuard™ CooktopCleanup is fast and easy with a cooktop that has raised edges to help contain -to-Edge Cast-Iron GratesMaximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.9.1K–12K BTU Multi-Purpose BurnersGet a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for BurnersCut down on cleanup with burners that are sealed to prevent food from falling into Oven CompatibleInstall this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.*
*See Oven/Cooktop Compatibility in specifications for more CompliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to
| ADA Compliant | ADA Height and Side Reach Compliant |
| UL | Yes |
| Prop 65 | CA |
Details
| Cooktop Configuration | All Burners |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes – Kit Included |
| Power Outage Compatible | Yes |
| Cooktop Surface Color | Stainless |
| Digital Display | No |
Element/Burner Details
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Power | 12000 BTU |
| Left Front Element-Burner Type | Standard |
| Left Rear Element-Burner Power | 5000 BTU |
| Left Rear Element-Burner Type | Simmer |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Power | 9100 BTU |
| Right Front Element-Burner Type | Standard |
| Right Rear Element-Burner Power | 18,000 BTU |
| Right Rear Element-Burner Type | Power |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Number of Grates | 2 |
Exterior Details
| Knob Color | Stainless Steel |
| Knob Type | Plastic |
Grate Details
| Grate Details | Cast Iron Grates , Continuous with Hinge , Dishwasher Safe , Matte Finish |
| Number of Grates | 2 |
Dimensions
| Cutout Depth | 20 in |
| Cutout Depth Max | 20 in |
| Cutout Depth Min | 19 in |
| Cutout Width | 29.563 in |
| Cutout Width Max | 29.563 in |
| Depth | 21 in |
| Cutout Width Min | 28.5 in |
| Gross Weight | 60.54 lbs |
| Height | 5.5625 in |
| Net Weight | 56.14 lbs |
| Width | 30 in |
| Common Size | 30 in |
| Maximum Height | 5.5625 in |
| Minimum Height | 5.5625 in |
Ventilation Details
| Downdraft Vent | No |
| Ventilation Type | N/A |
| Venting | N/A |
Smart Compatibility
| Works With | No |
Controls
| Control Location | Front |
| Control Type | Knobs |
Dimensions
| Gross Weight | 60.540 lbs |
Cooktop Details
| Cooktop Surface Color | Stainless |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Combination Match with Oven | WOES3027L , WOES5027L , WOES5030L , WOES5930L , WOES7027P , WOES7030P , WOS31ES0 , WOS31ES7 , WOS51EC0 , WOS51EC0A , WOS51EC7 , WOS52EM4 , WOS52ES4M , WOS72EC0 , WOS72EC7 , WOS92EC0 , WOS92EC7 |
| Installs Over Built-In Oven | Yes |
Electrical Requirements
| Power Cord Included | Yes |
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
Documents
WarrantyDownload (PDF 344.0KB)
Dimension GuideDownload (PDF 838.0KB)
Instruction SheetDownload (PDF 558.0KB)
Owner’s ManualDownload (PDF 1.5MB)
Parts ListDownload (PDF 802.0KB)
Quick Reference SheetDownload (PDF 1.4MB)
Control GuideDownload (PDF 3.2MB)
